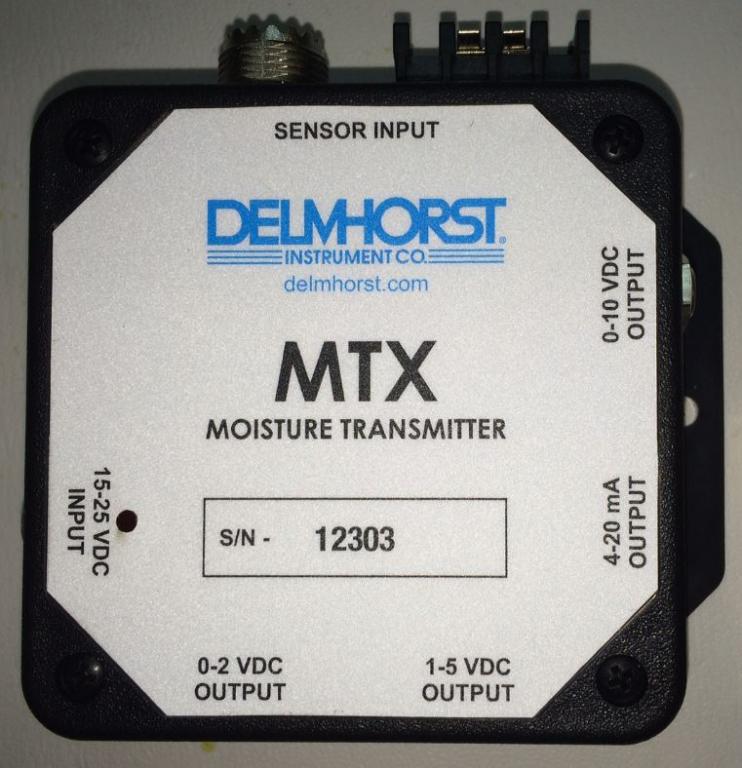

MTX wood moisture transmitter





Moisture meter

Name:
MTX wood moisture transmitter

Material:
Wood, hygroscopic materials

Mc:
6%-60% on wood

Calibrations:
Wood species

Overview
The standard MTX provides a current (MTX-C) or voltage (MTX-V) output via 4-wire transmission. Your PC or data logger provides the display and processor. Connect with any standard or special application Delmhorst electrodes.

The transmitters are ideally suited for applications requiring continuous monitoring of moisture in wood or other hygroscopic materials and interfacing the sensor to a data logger.

The transmitters are housed in an ABS wall-mounted case for easy mounting near the sensor or in a control room.

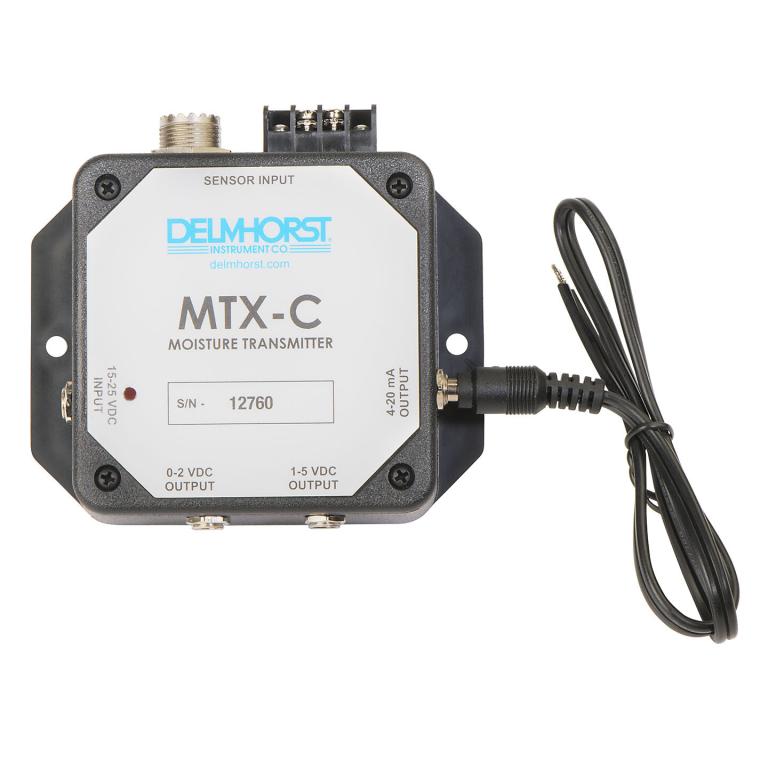

SPECIFICATIONS: MTX-C
  • Moisture range : 6% - 60% Wood (Douglas Fir @ 21ºC / 70ºF)
  • Specific calibrations : upon request
  • Operating temp. range : 0º-70ºC (32º-158ºF) (nominal)
  • No. of outputs : One
  • Outputs : D.C. Current 4 to 20 mA (Non-linear, inversely proportional) or, Voltage 1-5 VDC, or 0-2 VDC
  • Power requirement : D.C. Voltage between 15 to 30 volts
  • Supply current : Minimum 500 mA
  • Case size (mm) : 83 x 83 x 32
  • Mounting Base (mm): 108 x 84
  • Terminals : A 2.5 mm (Centre Positive) Power Jack for Power Input, Terminal Strip and UHF connector for Moisture Input
  • Includes : MTX-C or MTX-V, EUR Power Adapter NO.219ADA-0023, Output Plug NO. 216CAB-0023
MTX wood moisture transmitter

MTX wood moisture transmitter MTX wood moisture transmitter
Click to enlarge!
Electrodes
2-E/H
The 2-E/H is a compact electrode, connects directly to the MTX and comes equipped standard with 8mm (5/16”) pins and a 300cm (10’) cable

Benefits
For long-term monitoring of wood, drywall, and paper cores
HS-1
The HS-1 is a humidity sensor which connects directly to the MTX and can be placed at depths and in areas where our other electrodes cannot reach

Benefits
For long-term monitoring and on hard to reach areas
MTX wood moisture transmitter

Accessoires
Core & Shell pins
These insulated pins and robust cables can be used in a variety of applications for long-term monitoring.
Pin Extractor
This pin extractor allows removing core pins from the wood vertically. As such avoiding to bend them and increase the life time of the pins.
MTX wood moisture transmitter
