Home > Paper

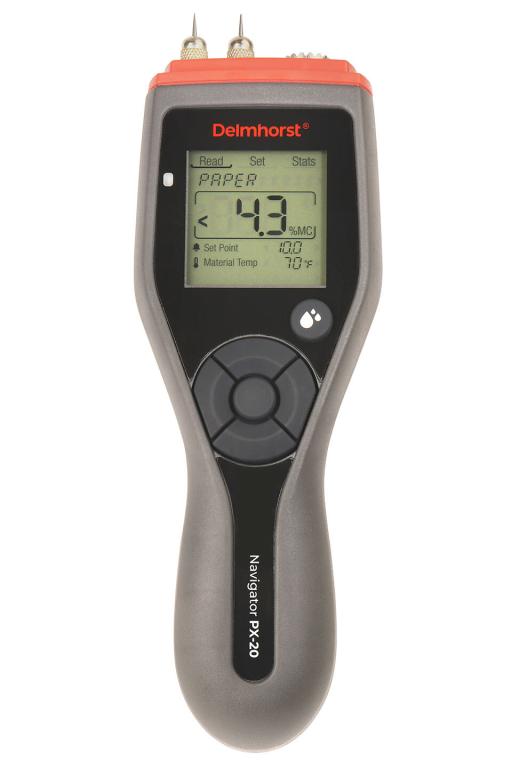

PX-20 moisture meter for paper





Moisture meter

Name:
PX-20 moisture meter for paper

Material:
Paper, Carton, Paperboard, Papertubes, Corrugated carton, paper on moving web, Thin sheet, Paper board in skids

Mc:
4.3-18% for kraft paper

Calibrations:
kraft paper calibration

Overview
Features

  • Large, custom display with auto backlight – easy to read under all conditions
  • Modern case design with large, tactile buttons and E-Z grip handle
  • On-screen statistics for up to 100 readings saved to the meter
    • High, Low, Average, Standard Deviation
  • Moisture Range: 4.3%-18% MC for paper (kraft paper calibration)
  • Alarm set point - alerts to user-selected MC level
  • Internal calibration check
  • “Low Batt” warning with audio
  • Auto off timer. Set to 1m, 4m or 10m
  • Compatible with existing Delmhorst prods and electrodes

Your Benefits:
Meter Specifications - Power: 2x AA Alkaline batter - Temperature Correction Range: 0-255° F (-18-124°C) - QR code on meter for easy access to support materials and meter registration - Size: meter only - 8.65in x 2.85in x 1.60in (21.97cm x 7.24cm x 4.06cm) - Weight: meter only - 8.6oz (244gm) - Hard plastic carrying case included - 2-year warranty on manufacturer’s defects. - Bonus warranty with on-line registration

Special Packages:
The PX-20, purchased individually, includes the PX-20 meter and 324CAS-0111 carrying Case. Order as PX-20W/CS

The PX-20 Package includes the PX-20 meter and larger 324CAS-0112 carrying case. Order as PX-20/P01
PX-20 moisture meter for paper

Electrodes
2-E Paper
Pin electrode
Fitted with the same 8mm (5/16") penetration pins that are mounted on our pin type meters

Benefits
Electrode great for hard to read areas Use on curved surfaces such as cardboard and paper tubes
19-E/STC
Features two 13cm (5'') long blades, bent to a 35° angle, and coated in Teflon except for the tips

Benefits
Great for checking behind trim and baseboard molding
19-E Paper
Blade type electrode.

Available blade lengths:
12,5 cm (5”)
30 cm (12”)
45 cm (18”)

Benefits
Blade type electrode for measuring of paper on skids
55-E
Leaf type electrode

Benefits
For measuring moisture content on a moving web. Can be used with a portable unit or for stationary installation.
12-E
Double roller type electrode

Benefits
For measuring moisture content on a moving web
PX-20 moisture meter for paper

Accessoires
MCS-2X
Moisture content standards are great for verifying that your Delmhorst moisture meter is in calibration. The MCS-2X can be used on the p-2000 paper moisture meter with software version 2.0 or the new PX-meters. With two electrical resistance values (6% and 10%) to test your meter against, you can be sure that your readings will stand up to the strictest standards of accuracy.
2498/A-100
Uninsulated pin and retainer with 8mm (5/16") penetration.
Standard on all meters with built-in pins and the 2-E and 4-E electrodes.

Used on wood up to 38mm (1 ½”), concrete and gypsum.
PX-20 moisture meter for paper

Downloads & Videos
Manual:Download pdf
Brochure:Download pdf

PX-20 moisture meter for paper
