pinless moisture measurement - flooring
restoration moisture meter complete package
moisture inspection

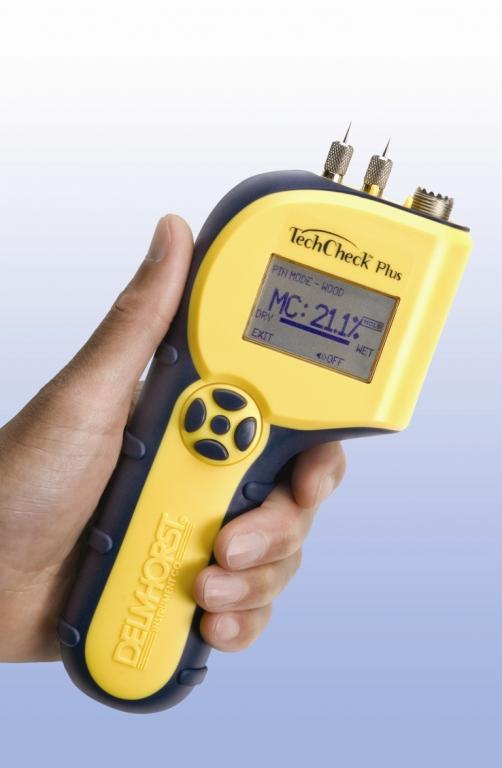

TechCheckPlus 2-in-1 building materials moisture meter - Restoration





Moisture meter

Name:
TechCheckPlus 2-in-1 building materials moisture meter - Restoration

Material:
Floorings, Floors, Walls, Drywall, Ceilings, Building materials, Wood

Mc:
6-60% on wood
0.1-6% on drywall (Delmhorst Exclusive Scale)
0–300 numerical reference scale for non-wood building materials (Scan mode)

Calibrations:
Wood, Drywall

Overview
TechCheckPlus 2-in-1 meter is designed to scan and locate moisture levels in building materials

Given the challenging conditions on restoration projects, it pays to have an easy-to-use moisture meter that you can depend on. The accurate 2-in-1 TechCheck PLUS was designed with simplicity in mind and helps to make even the most demanding job simple.

The newly updated TechCheck PLUS has all the great features you've come to expect, along with some new ones.

Your Benefits:
  • Bright, clear digital display
  • Pin mode:
  • • 0.1% - 6% drywall scale, Delmhorst Exclusive
    • 6%-60% MC wood scale
    • Integral Contact pins mounted on top of meter provide 8mm (5/16”) penetration
    • Built-in connector accepts any Delmhorst electrode
  • Scan Mode: (0-300 numerical reference scale)
  • Spanish language option
  • Built-in back-light makes reading in dark places a cinch
  • Auto-shutoff timer saves battery life
  • Audible, adjustable alarm alerts you when your pre-selected MC has been reached
  • Operating Temperature: from -20° to +70°C
  • Size: 22x9x4,5cm (8½”x3⅜”x1Ύ”)
  • Weight: 312gr. (11 oz.)
  • Rugged construction ensures years of reliable use
  • Sturdy plastic carrying case=
  • 9V battery
  • 1-year warranty

Special Packages:

TechCheck PLUS Insulation package:
Includes meter, 21-E electrode, extra contact pins for the meter, and carrying case
TechCheckPlus 2-in-1 building materials moisture meter - Restoration

Electrodes
26-ES Wood hammer
Hammer electrode. The 496 contact pins that come with the 26-ES penetrate 29mm (1⅛”) and have insulated shanks so that only the tips are exposed. The pins make contact only at their uncoated tips and provide much more accurate readings of moisture content at various levels of penetration.
Also available as the 26-ED, which includes gauge to measure pin penetration depth.

Benefits
This hammer electrode will easily check high density hardwood that short pins are unable to penetrate. It will also easily penetrate through flooring to plywood sub-floor or concrete.

2-E Building materials
Fitted with the same 8mm (5∕16") penetration pins that are mounted on our pin type meters.

Benefits
Electrode great for hard to read areas.
Use on wood joists and drywall.
2-E/split
NEW:
Flexible electrode makes moisture testing at impossible to reach places possible. Simply attach any length metal “probe” to the alligator clips on the end of the 2-E/Split

Benefits
Easily test under cabinets, through drywall, or any other hard to reach area
15-E Wood
Pin type, with two rows of four pins each, maximum penetration 3mm (⅛"). Penetration can be adjusted according to stock thickness by means of gauge block

Benefits
Used for veneer
22-E
Pin type, comes with A-111 uninsulated contact pins for 38mm (1½") penetration.
Will also accept 496, insulated pins, 29mm (1⅛”) penetration

Benefits
For use on plaster, masonry and wood
21-E
Long pin type. The 608 pins that come with the 21-E are insulated, except at the tips, and can reach a maximum penetration of 8.25cm (3Ό"). The 21-E is also available as 21-E/001 with 15.25cm (6") penetration, or as the 21-ET with a tapped handle for hard to reach areas.

Benefits
For use on roofs, insulation, or EIFS
19-E/STC
Features two 13cm (5'') long blades, bent to a 35° angle, and coated in Teflon except for the tips

Benefits
Great for checking behind trim and baseboard molding
TechCheckPlus 2-in-1 building materials moisture meter - Restoration

Accessoires
MCS-1
Moisture content standards are great for verifying that your Delmhorst moisture meter is in calibration. The MCS-1 can be used on any meter with a wood scale. With two electrical resistance values (12% and 22%) to test your meter against, you can be sure that your readings will stand up to the strictest standards of accuracy.
2497/A-100
Uninsulated pin and retainer with 8mm (5/16") penetration.
Standard on all meters with built-in pins and the 2-E and 4-E electrodes.

Used on wood up to 38mm (1 ½”), concrete and gypsum.
496
496 contact pins are insulated except at the tips, and measure 5cm (2") overall with 29mm (1 1/8") penetration.
Standard on the 26-ES.

Used to check wood up to 13cm.
1849
An alternate to the 496 pin for the 26-ES, the 1849 is a 38mm (1½”) insulated pin with 13mm (1/2") penetration.

The 1849 is suitable for wood up to 5cm (2") thick.
608
The 608 insulated contact pins measure 10cm (4") overall, and penetrate 8,25cm (3 1/4").
Standard on 21-E and 18-ES electrodes.

Used on roofing, insulation, timber, poles, and EIFS.
608/001
The 608/001 insulated contact pins measure 18cm (17") overall, and penetrate 15,25cm (6").
Alternative length to be used on 21-E and 18-ES electrodes.

Used on roofing, insulation, timber, poles, and EIFS.
A-111
Another alternative to the 496, the A-111 is an uninsulated contact pin measures 36mm (1 7/16”) and has 1,3cm (1/2") penetration.
The A-111 is compatible with both the 26-ES and the 22-E, and its tapered point makes it easier to penetrate into hard surfaces.

Can be used on wood up to 5cm (2") thick.
632/4
Retainer used to hold contact pins in place.

Used with # 496, # 1849, and # A-111 pins.
305RET-0021/4

Retainer used to hold contact pins in place.

Used with pin #608 and pin #608/001.

TechCheckPlus 2-in-1 building materials moisture meter - Restoration

Downloads & Videos
Manual:Download pdf
Brochure:Download pdf
