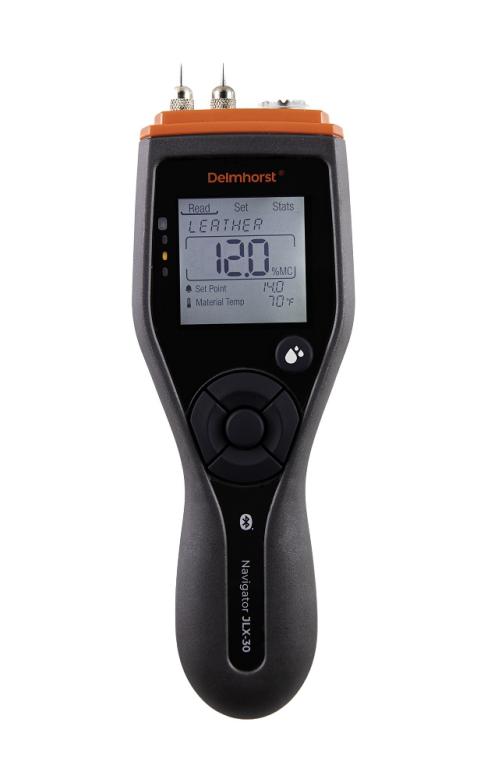

JLX-30 moisture meter for leather





Moisture meter

Name:
JLX-30 moisture meter for leather

Material:
Leather, hides, leather products

Mc:
10-28% on leather

Calibrations:
Leather

Overview
The Delmhorst EDGE™ app offers
  • Timestamp and geotag
  • Data export to .csv format
  • Save unlimited readings
  • Add notes to each location
  • Designate readings to a location/room or dehumidifier
  • View and filter all readings


Your Benefits:
  • Large, custom display with auto backlight – easy to read under all conditions
  • Modern case design with large, tactile buttons and E-Z grip handle
  • On-screen statistics for up to 100 readings saved to the meter (High, Low, Average, Standard Deviation)
  • Temperature correction (°F/°C)
  • Moisture Range: 10%-28% MC Leather
  • Bluetooth® connectivity to EDGE® app
  • Color-coded LED’s – adjustable through EDGE® app
  • Alarm set point - alerts to user-selected MC level
  • Internal calibration check
  • "Low Batt" warning with audio
  • Auto off timer. Set to 1m, 4m, or 10 m
  • Integral contact pins penetrate max 5/16”
  • Compatible with any Delmhorst external electrode
  • Power – 2x AA Alkaline batteries
  • Temperature Correction Range: 0-255° F      (-18-124°C)
  • QR code on meter for easy access to support materials and meter registration
  • Size: meter only - 8.65in x 2.85in x 1.60in (21.97cm x 7.24cm x 4.06cm)
  • Weight: meter only - 8.5oz (241gm)
  • Hard plastic carrying case included
  • 2-year warranty on manufacturer’s defects. Bonus warranty with on-line registration.
  • EDGE® App

Special Packages:
JLX-30W/CS : Order as JLX-30W/CS.
JLX-30 moisture meter for leather

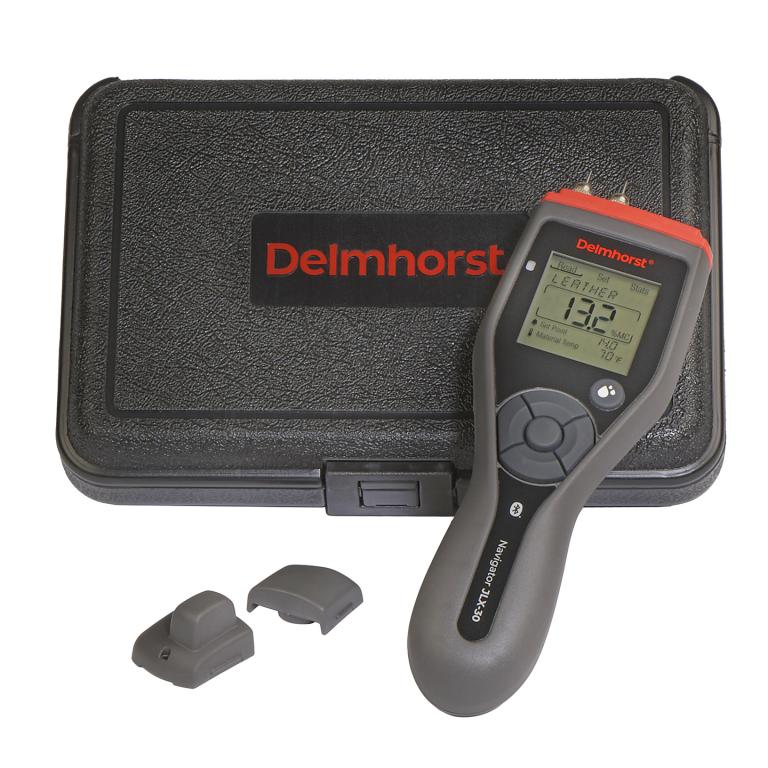

Moisture meter leather JLX-30 JLX-30 moisture meter leather with EDGE app in case
Click to enlarge!
Electrodes
4-E leather

Comes with 4 uninsulated 2497/A-100 contact pins for 5/16" penetration. Useful for:



  • Leather producers: Use for tough leather.
  • Dry-kiln operators: Use on kiln-dried boards up to 2" and on air-dried boards up to 5/4.

Can also be fitted with A-103 uninsulated pins with 1 3/32” length and 11/16” penetration.



Benefits


The 4 pins offer mutiple measuring points in the leather, optimizing the reliability of your measurements.

JLX-30 moisture meter for leather

Accessoires
2498/A-100
Uninsulated pin and retainer with 8mm (5/16") penetration.
Standard on all meters with built-in pins and the 2-E and 4-E electrodes.

Used on wood up to 38mm (1 ½”), concrete and gypsum.
MCS-JL-2000
This moisture content standard is great for verifying that your JL-2000 leather moisture meter is in calibration. With two electrical resistance values (13% and 21%) to test your meter against, you can be sure that your readings will stand up to the strictest standards of accuracy.
The MCS-JL-2000 is also available with a letter of certification traceable to NIST.
JLX-30 moisture meter for leather

Downloads & Videos
Brochure:Download pdf
